Shimano DURA-ACE Crankset

Service Pages

Shimano Service Page

Manuals

Torque Chart

Tools

T30 Torx Wrench

5 mm Hex Wrench

TL-FC16 Shimano Crank Assembly Tool

Torque Values

Warning: Incorrect tightening of bicycle components can lead to damage, accident, injury, or even death. The accuracy of provided values is not guaranteed; always check directly with the manufacturer.
Bolt Name Tool Torque (Nm)
Left crank arm mounting screws 12.0 - 14
Chainring fixing screws 12.0 - 16
Crank mounting screw 0.7 - 1.5

Deals

No avaiable deals

Videos

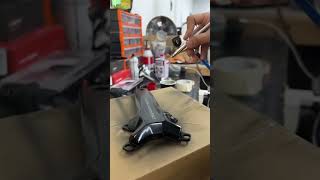

Shimano Dura Ace Crankset with PM Disassembly #fyi #fy #fyp #shimano #duraace #bikelife #maintenace
